Case Study: DataMind AI™ Prevents Conveyor Motor Failure by Detecting Hidden Bearing Fluting
May 25, 2025
Overview
At a large coal mining site, DataMind AI™ was deployed to monitor multiple conveyor drive motors – critical components in the site’s material handling process. Shortly after deployment, the system flagged early-stage deterioration in one of the motor bearings. While traditional monitoring tools recognized this as a generic bearing issue, DataMind AI™ identified the true root cause: electrical fluting – damage caused by current leakage through the bearing.
This insight proved critical. Without it, the team might have simply replaced the bearing, unknowingly leaving the electrical issue unresolved. That would have led to repeated premature failures, rising maintenance costs, and increased operational risk. Instead, by addressing the underlying cause, the site was able to prevent recurring damage, extend the lifespan of future bearings, and avoid unnecessary downtime.

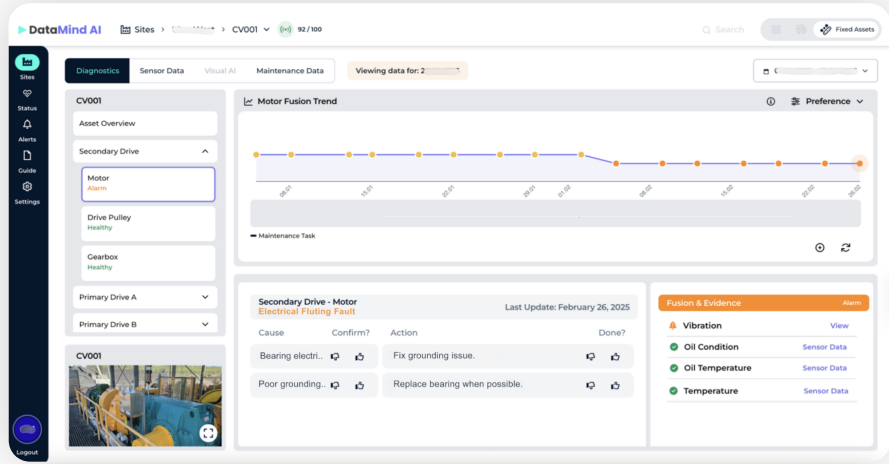

Motor flagged as alarm:
Detection Through Sensor Fusion
Operational Mode Isolation
DataMind AI™ applied Sensor Fusion – combining vibration, tachometer, and motor current data – to detect mechanical faults in a noisy and highly variable conveyor environment. By isolating consistent operating modes, the system filtered out operational noise caused by changing loads, ore size, or belt dynamics – greatly reducing false positives and ensuring that vibration increases reflected real mechanical issues.
Fluting Root Cause Detection

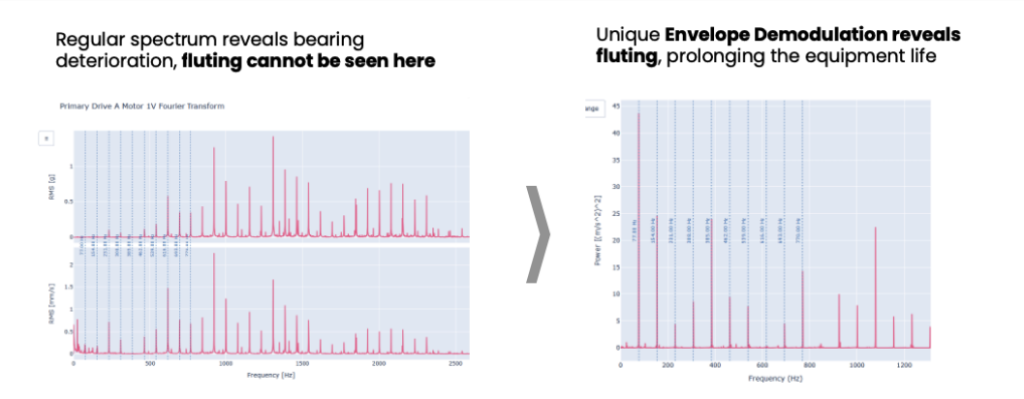

Envelope analysis removed high-frequency noise and revealed early-stage bearing degradation. While the standard spectrum showed general wear, envelope demodulation exposed distinct fluting patterns – a form of electrical discharge damage to the bearing surface, enabling accurate root cause diagnosis.
Real-Time Feedback & Validation
After alerting the site, the team proactively replaced the bearing and resolved a grounding issue believed to have caused the damage.
DataMind AI™ confirmed the repair’s success in real time:

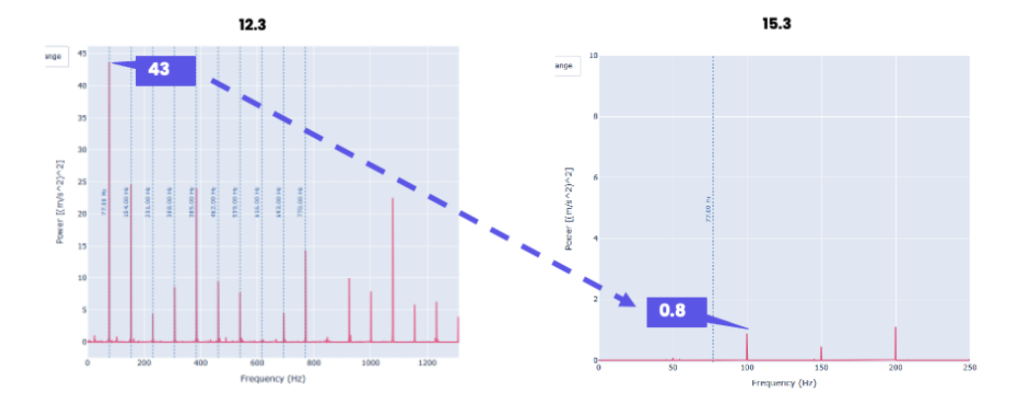

- Spectrum Demodulation power levels dropped from 43 ⟶ 0.8, validating the resolution.
- Bearing lifespan extended, and a failure was avoided.
Resolution
By identifying the true root cause – electrical fluting – DataMind AI™ enabled the site to take targeted action that not only resolved the immediate issue, but also prevented future bearing damage.
Following the AI-driven diagnosis, the system issued a real-time alert and later confirmed the success of the corrective action. As a result, the bearing’s lifespan was extended, unnecessary replacements were avoided, and long-term maintenance costs were reduced – without disrupting operations.
Conclusion
DataMind AI™ enabled the site to detect a critical bearing issue that conventional methods failed to diagnose – uncovering not just early degradation, but the root cause: electrical fluting.
By combining envelope demodulation with advanced sensor fusion, the system delivered a complete diagnostic workflow: early detection, clear alerting, and post-repair validation – all in real time.
As a result, the site avoided 10 hours of unplanned downtime, saved ~$191,000 in potential production losses, extended bearing life, and prevented future failures – improving long-term reliability and reducing maintenance costs.
