Vibration Analysis for Mining Equipment: Predict Failures Before They Happen
July 10, 2025
Vibration Analysis for Mining Equipment: Predict Failures Before They Happen
DataMind AI – Vibration Analysis System That Unlocks Hidden Faults in Mining Equipment
Vibration analysis is one of the most powerful tools in mining maintenance – not just for detecting symptoms, but for delivering accurate diagnostics that point directly to failure modes.
In mining environments, machines operate under extreme conditions – high loads, aggressive duty cycles, and substantial ambient noise. These challenges can distort vibration signals, making it harder to detect faults or causing unnecessary false alarms.
That’s why DataMind AI™ was purpose-built for mining, with two critical vibration analysis differentiators:
- Operational Mode (OP MODE) Isolation – separates true mechanical faults from natural vibration changes caused by load and speed variation
- Envelope Demodulation – filters out irrelevant noise and highlights weak failure signals before they’re visible to other methods
These capabilities allow DataMind AI™ to detect faults earlier and more reliably, reducing risk and extending equipment life.
By combining high-resolution sensors, advanced vibration software, and AI diagnostics, DataMind AI™ delivers proactive failure detection across mills, crushers, pumps, compressors, fans, and other critical equipment.
Unplanned downtime in mining can lead to massive production losses, safety hazards, and supply chain disruption. DataMind AI™ helps eliminate these risks – turning raw vibration into insights you can act on before breakdowns occur.
Why Vibration Analysis Matters in Mining
Vibration analysis is the most sensitive method for detecting mechanical issues in rotating machinery. Even minor deviations in vibration patterns can indicate misalignment, imbalance, or bearing deterioration.
For critical assets, using vibration analysis equipment helps reduce unplanned shutdowns, avoid catastrophic failures, and extend component life.
Traditional time-based maintenance fails to capture the dynamic nature of wear and tear in high-utilization environments. In contrast, vibration condition monitoring adds precision to maintenance planning ‐ allowing teams to address faults before they escalate into costly problems.
Vibration analysis does more than detect symptoms ‐ it delivers direct diagnostic insight into specific failure modes. Unlike threshold-based methods like temperature or pressure monitoring, which may only indicate that something is wrong, vibration data points straight to the root cause ‐ streamlining decision-making and response.
It also covers a broader range of mechanical deteriorations. Many failures occur without any change in temperature or pressure. Relying on those parameters alone risks missing critical early warnings.
Most importantly, vibration abnormalities can emerge more than a month before an actual failure. By contrast, temperature rises ‐ if they appear at all ‐ typically show up only hours before breakdown.

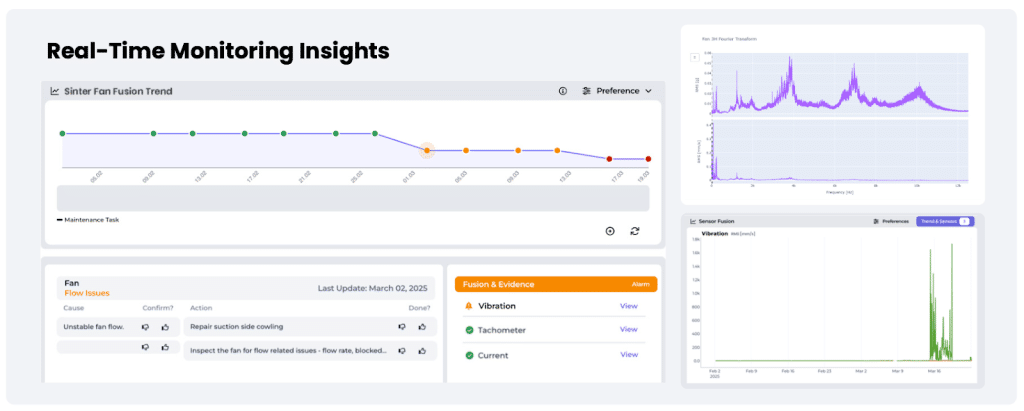

Live fault detection and diagnostics powered by DataMind AI™ vibration analysis
Advanced Vibration Analysis and Remote Sensor Coverage
Using rugged, high-bandwidth remote vibration sensors, DataMind AI™ captures complete vibration spectra across a wide frequency range – including low-speed assets under 60 RPM. This enables comprehensive vibration condition monitoring of:
- Mills (Ball, SAG, AG)
- Crushers (Jaw, Cone, HPGR)
- Conveyor Pulleys
- Pumping Systems (Centrifugal, Rotary, Reciprocating)
- Compressors
- Fans & Blowers (ID, FD, Sinter, Cooling Towers)
- Rotating Machinery (Screens, Kilns, Rolling Mills)
- Other Critical Plant Equipment
With always-on connectivity, sensor data is streamed in real time to the cloud for fusion and analysis – eliminating the need for manual readings or spot checks.
Each sensor is engineered for harsh environments and performs reliably in areas with dust, moisture, vibration, and electromagnetic interference. This robustness ensures uninterrupted data flow and actionable alerts.
To enable precise diagnostics, systems must capture the full vibration spectrum, not just RMS values. That’s why DataMind AI™ uses gateways with sampling frequencies optimized for mining – including for slow, noisy, and variable-load machines.

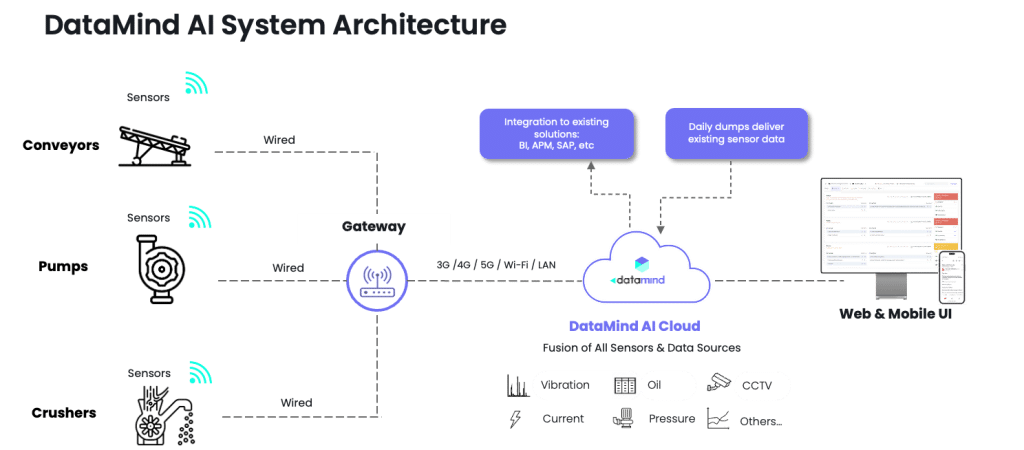

DataMind AI™ System Architecture: Sensors → Gateway → Cloud → Insights.
Differentiator 1: OP MODE Isolation for Mining Conditions
Mining equipment operates under highly variable conditions ‐ with frequent fluctuations in load and speed. These changes can distort vibration signals, either masking real faults or generating false alarms.
DataMind AI™ overcomes this by isolating the asset’s Operational Mode (OP MODE) using additional sensor data like motor current and speed. By correlating vibration readings to the actual working state of the machine, the system can tell the difference between a legitimate increase in workload and a sign of mechanical deterioration.
This enables early and accurate fault detection ‐ even in environments where vibration alone would be unreliable.
Differentiator 2: Envelope Demodulation for Noisy Mining Environments
Mining machines are inherently noisy – they grind, crush, and process heavy material under harsh, variable conditions. In such environments, weak failure signals often get buried under operational noise, making early detection nearly impossible using traditional vibration methods.
DataMind AI™ applies Envelope Demodulation – an advanced signal processing technique that filters out irrelevant frequencies and amplifies the faint signals that truly matter. This allows the system to identify faults that other methods miss, and to do so significantly earlier.
With Envelope Demodulation, DataMind AI™ delivers:
- Detection of deteriorations not picked up by traditional testing
- Early identification of bearing faults and gearmesh anomalies
- Clear signal patterns even in high-noise, low-SNR environments like crushers and mills
- Insight into the exact fault location – inner race, outer race, or cage – well before audible or thermal symptoms
- Fewer false alarms by ignoring vibration caused by normal process variation
This capability is especially valuable in mining, where standard RMS-based analysis often fails. By removing the masking effects of fluctuating load and speed, DataMind AI™ uncovers the real fault signatures hiding in the noise.

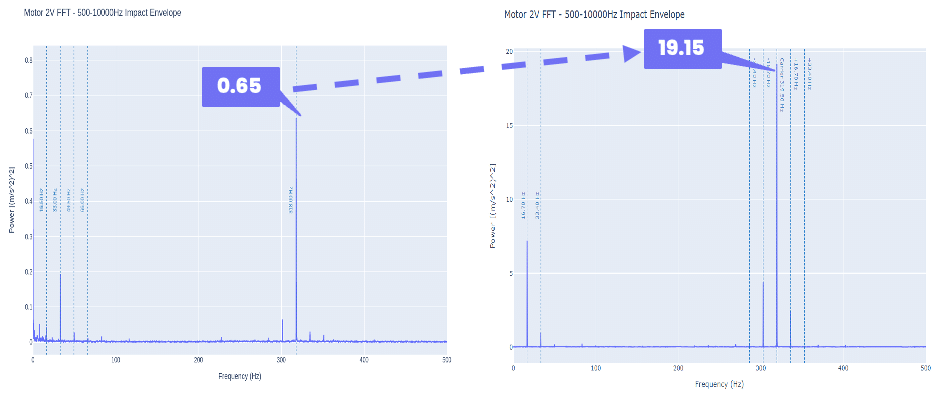

Envelope Demodulation reveals early-stage fault signal
What Types of Mechanical Faults Can Be Detected with Vibration Analysis?
DataMind AI™ identifies a wide range of mechanical issues – even under complex, fluctuating conditions.
Rather than relying on RMS values or threshold-based alerts, the system detects evolving fault signatures, including:
- Imbalance
- Bearing wear and fatigue
- Misalignment
- Looseness and resonance
- Gear-related anomalies
This level of insight helps teams focus on the real underlying issue – not just symptoms – and take action early, before failures escalate.
AI Sensor Fusion: Beyond Just Vibration Analysis
Vibration analysis is powerful, but it doesn’t tell the whole story. Some mechanical and process faults simply can’t be detected through vibration alone.
That’s why DataMind AI™ integrates multiple sensor types, using AI-powered sensor fusion to reveal issues that traditional systems miss. By correlating signals from different domains, the system provides deeper diagnostics and eliminates noise-driven false alarms.
Examples include:
- Visual Monitoring – cameras for ore size, belt alignment, or crusher discharge
- Online Oil Sensors – detect lubrication degradation and contamination
- Pressure & Flow Monitoring – identify deviations in pump curves or hydraulic performance
- Current & Power Monitoring – track overloads and soft-fault conditions
DataMind AI™ fuses inputs from:
- Vibration sensors
- Current and power signals
- Tachometers
- Oil quality sensors
- Temperature and pressure inputs
Each signal is analyzed in context of the machine’s actual operational mode (load and speed), ensuring diagnostics are accurate and actionable – not just data for data’s sake.
This fusion-based approach adapts to each asset’s behavior and environment. It reduces false positives, increases diagnostic depth, and empowers teams with clear, trusted alerts.

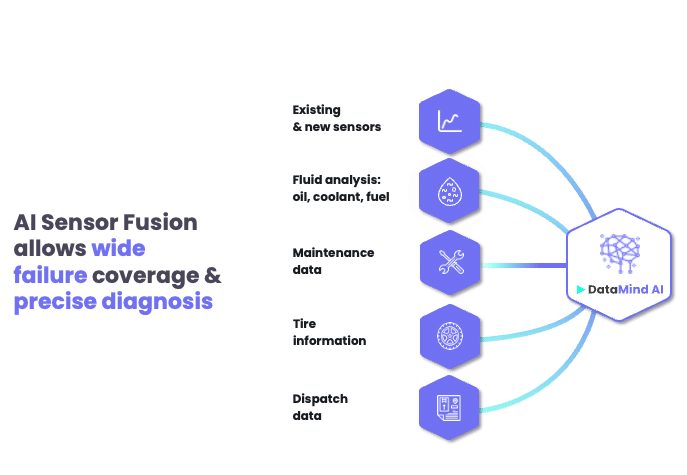

Sensor fusion for precise diagnostics
Not Just Raw Data – Automated, Actionable Diagnostics
A major challenge in vibration analysis is that it typically requires deep expertise to interpret raw signals and translate them into real mechanical insight.
DataMind AI™ eliminates that barrier. The platform delivers automated, AI-driven diagnostics that go far beyond waveform charts or RMS alerts – pinpointing:
- Specific failure modes (e.g. bearing outer race damage)
- The root cause of the problem (e.g. misalignment, lubrication loss)
- The severity and urgency of intervention
Each alert is based on a full-spectrum analysis and contextualized with operational mode, so maintenance teams receive not just raw data – but clear, trusted guidance on what’s happening, where, and what to do next.

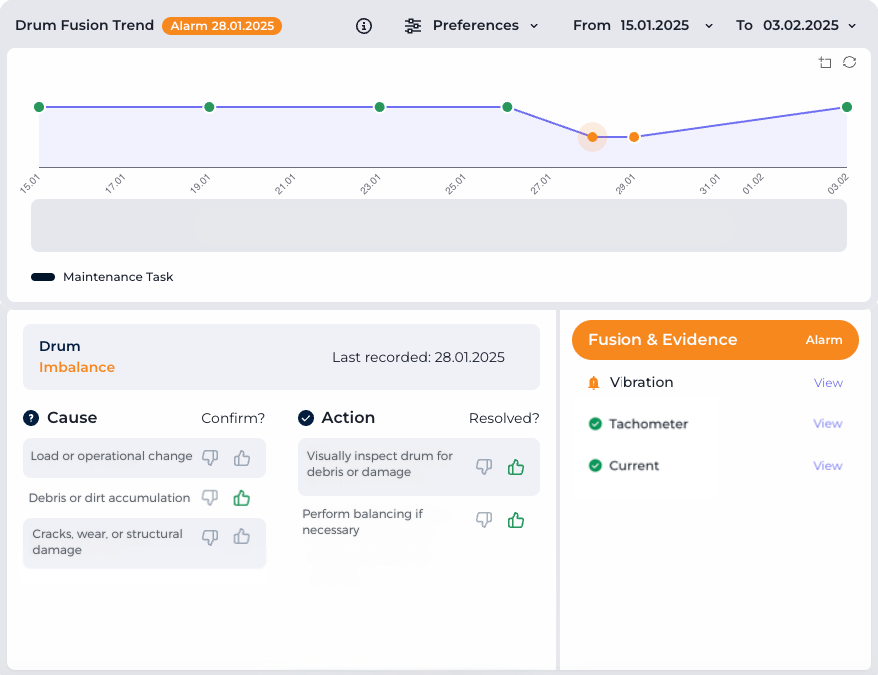

DataMind AI™ displays AI-driven fault cause, action, and sensor evidence
Real Results: Vibration Analysis Case Studies in Mining
Ball Mill Motor Bearings
DataMind AI™ identified rapid outer race deterioration in the motor bearing, missed by traditional monitoring.
Advanced vibration analysis enabled early intervention – preventing 36 hours of downtime and saving $648K.
Stacker Conveyor Pulley
Vibration signals revealed early-stage bearing failure at 2.24Hz, confirmed and resolved during planned maintenance.
Avoided 14 hours of unplanned stoppage and prevented a $1.12M loss.
Compressor Gearbox
Sensor fusion detected abnormal gear friction due to faulty anti run-back lubrication.
The issue was addressed before failure – saving 30 hours of downtime and $540K in potential losses.
In each case, DataMind AI™ provided early, accurate insights that eliminated guesswork – allowing teams to schedule the right intervention at the right time. This has prevented catastrophic failures, optimized resource allocation, and delivered full ROI within months.
Explore DataMind AI™: The Future of Vibration Analysis for Mining Equipment
Experience the benefits of next-generation vibration analysis software ‐ combining AI-powered diagnostics, full-spectrum sensors, and real-time insights tailored for mining environments.
